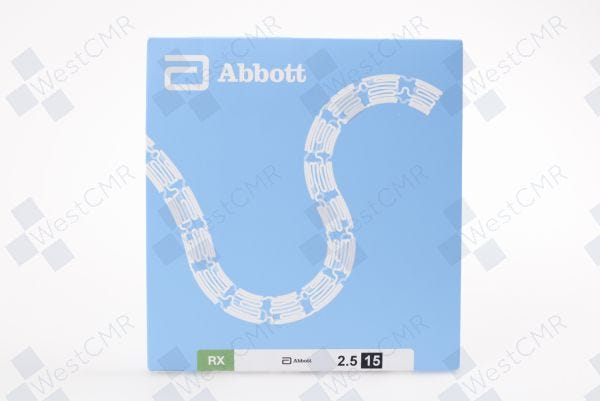

ABBOTT: 1125250-15

Quantity Available:0
Coronary Stent System, 2.5 dia. x 15 mm Length, Cobalt Chromium Alloy, Everolimus-Eluting, Rapid Exchange, 10 ATM Nominal Pressure, 18 ATM Rated Burst Pressure, Non-Erodible Polymer Coated, Sterile, Single-Use
$499.00
/Each
The XIENCE Alpine everolimus eluting coronary stent system is comprised of two main components: The drug-coated stent and the balloon expandable delivery system. The XIENCE Alpine stent system uses the identical stent and stent contacting balloon materials and the identical drug coating formulation and drug dose density (100 µg/cm2) as the XIENCE Prime everolimus eluting coronary stent system.
More Informationa
Manufacturer ABBOTT
Type Everolimus-Eluting, Rapid-Exchange (RX)
Material Cobalt Chromium Alloy
Sterility Sterile
Length 15 mm
Diameter 2.5 mm
Coating Type Non-Erodible Polymer
Usage Single-Use
Sterilization Method Ethylene Oxide
Sheath Diameter 5 Fr
Guidewire Compatibility ?0.014 in.
Packaging Type Barrier
Nominal Pressure 10 ATM
Rated Burst Pressure 18 ATM
Crossing Profile 0.044 in.
Shaft Outer Diameter 0.74 mm Proximal, 0.86 mm Distal
Guide Catheter Sheath Minimum Inner Diameter 5 Fr
Delivery System Length 145 cm
Delivery System Ports Single Access Port to Inflation Lumen, Guidewire Exit Notch is Located 25.5 cm From Tip
Stent Delivery Balloon Tapered Balloon, with Two Radiopaque Markers Located on the Catheter Shaft
Post Dilatation Limit 3.25 mm
Drugs 74 µg
